AIDA-ROVETTA

Description

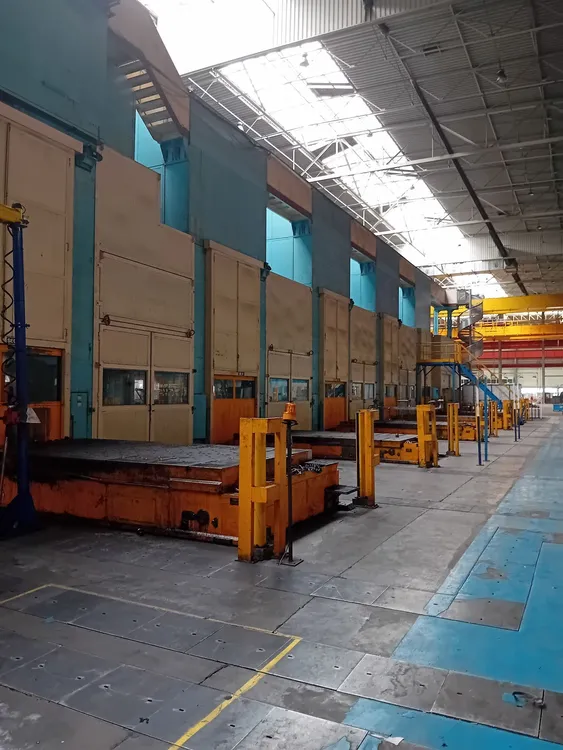

2000T Class A Aida-Rovetta Tandem Line

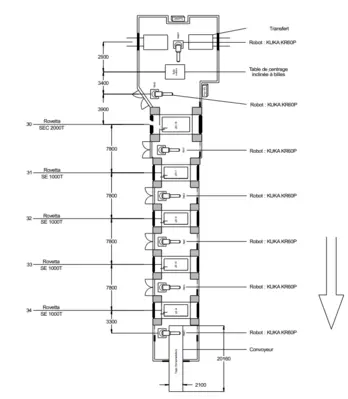

Consisting of One (1) 2000 Ton Lead Press with 4500mm x 2400mm Bed and 400 Ton Cushions & 4 1000T Rework Presses with 4500mm x 2200mm Beds. The entire line is complete with press automation including parts transfer, 6 x Kuka KR60P Robots and Conveyor System.

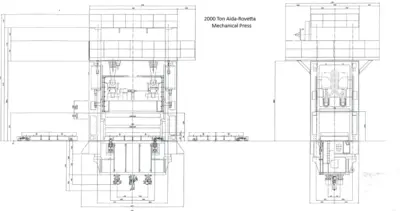

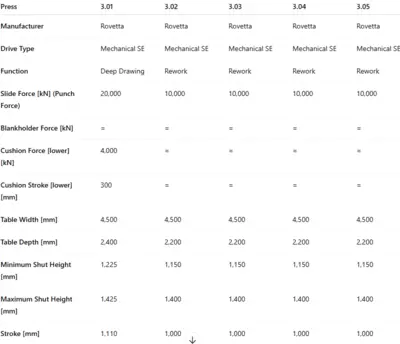

Manufacturer : AIDA / Rovetta 2000T
Drive Type : Mechanical SE
Function: Deep Drawing
Slide Force (kN) : 20,000
Lower Cushion Force (kN) : 4,000
Lower Cushion Stroke ( mm) :300
Table Width (mm) :4,500
Table Depth ( mm) : 2,400
Min. Clearance ( mm) : 1,225
Clearance ( slide-bolster, bottom stroke/ top adj (mm) : 1,425
Stroke ( mm) : 1,110
Automation : Robot
Loading Automation: Robot
Oiler : No
Washer : No
Aluminum : No

Manufacturer : AIDA / Rovetta 1000T (X4)
Drive Type : Mechanical SE
Function - Secondary Op.
Slide Force (kN) 10,000
Table Width (mm) 4,500
Table Depth ( mm) 2,200
Bolster Thickness (mm) 500
Min. Clearance ( mm) 1,150
Clearance ( slide-bolster, bottom stroke/ top adj (mm) 1,400
Stroke ( mm) 1,000
Strokes per minute (mm) 7-20
Slide Adj (mm) 250
