AIDA-ROVETTA

Description

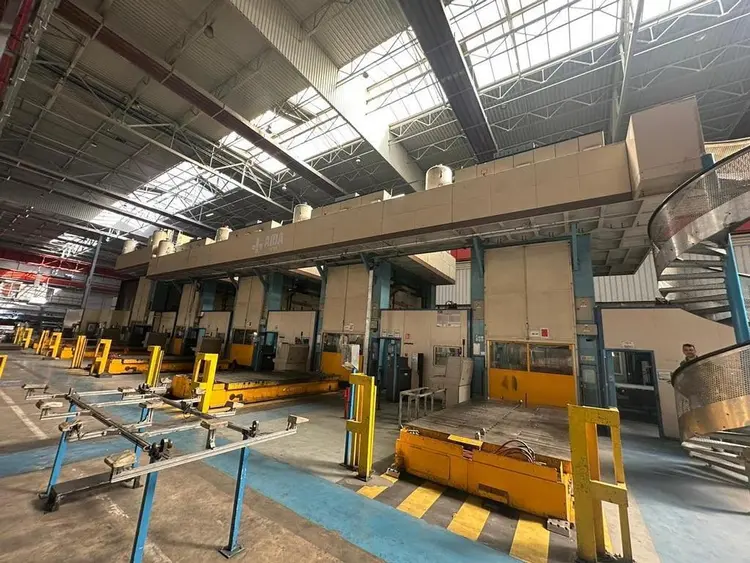

2000T Class A Aida-Rovetta Tandem Line
Consisting of One (1) 2000 Ton Lead Press with 4500mm x 2300mm Bed and 400 Ton Cushions & 4 800T Rework Presses with 4500mm x 2300mm Beds. The entire line is complete with press automation including parts transfer, 6 x Kuka KR60P Robots and Conveyor System.

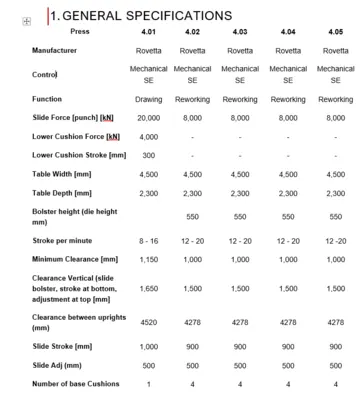

Manufacturer : AIDA / Rovetta 2000T
Drive Type : Mechanical SE
Function: Drawing
Slide Force (kN) : 20,000
Lower Cushion Force (kN) : 4,000
Lower Cushion Stroke ( mm) :300
Table Width (mm) :4,500
Table Depth ( mm) : 2,300
Stroke per minute : 8-16
Min. Clearance ( mm) : 1,150
Clearance Vertical ( slide-bolster, bottom stroke/ top adj (mm) : 1,650
Clearance between uprights ( mm) : 4520
Slide Stroke ( mm) : 1,000
Slide Adj (mm) 500
Number of base cushions : 1

Manufacturer : AIDA / Rovetta 800T (X4)
Drive Type : Mechanical SE
Function - Reworking
Slide Force (kN) 8,000
Table Width (mm) 4,500
Table Depth ( mm) 2,300
Bolster height (die heights mm) 550
Min. Clearance ( mm) 1,000
Clearance between uprights ( mm) : 4278
Clearance ( slide-bolster, bottom stroke/ top adj (mm) 1,500
Slide Stroke ( mm) 900
Strokes per minute (mm) 12-20
Slide Adj (mm) 500
Number of base cushions : 4
