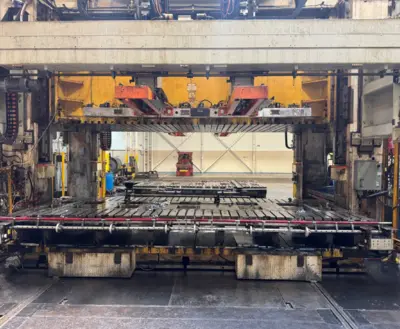

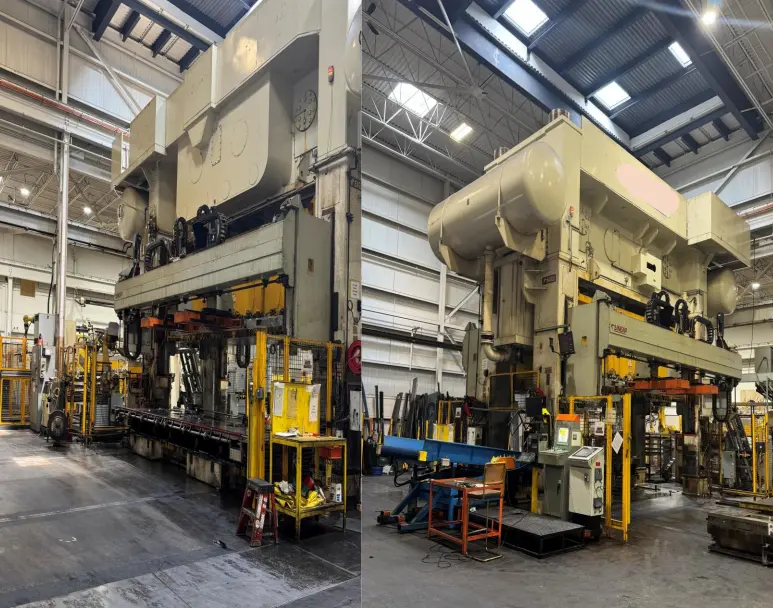

Used EAGLE PRESS SE4-2000-240-84 | Mechanical Straight Side Presses

Description

Double Rolling Bolster, Linear Transfer System, Colt Feedline, and Fanuc Robotic De-Stacker/Blank Conveyor.

Bolster Specifications
Front to Back – 84”
Left to Right – 240”

Linear Transfer Specifications:
Serial Number – J2019-01282
Model Number – LTA-FR4P-240-84
Min Between Rails (Out Position) –
130”
Min Between Rails (In Position) –
50”
Min Transfer with 0.00” Offset –
59”
Maximum Clamp Stroke per Side –
40”
Maximum Lift – 30”

Feeder Specifications
Model Number - CERF-60-72
Serial Number – 114-2483
Max Material Thickness - .235”
Min Material Thickness - .030”
Max Material Thickness 72” @ 1200MPA – .125”
Max Material Width – 72”
Min Material Width – 6”
Max SPM – 25SPM @ 48” of Progression
Traversing Feeder Type

Straightener Specifications
Model Number - CERF-60-72
Serial Number – 160-2480
Max Material Thickness - .235”
Min Material Thickness - .030”
Max Material Thickness 72” @ 1200MPA – .125”
Max Material Width – 72”
Min Material Width – 6”
Max SPM – 25SPM @ 48” of Progression

Uncoiler Specifications
Model Number - CHDRCK-5000-72
Serial Number – 120-2479
Max Material Thickness - .235”
Min Material Thickness - .030”
Max Material Thickness 72” @ 1200MPA – .125”
Max Material Width – 72”
Min Material Width – 6”
Max SPM – 25SPM @ 48” of Progression
Max Coil Weight – 50,000lbs
Max Coil OD – 72”
Max Coil ID – 24.5”
Min Coil ID – 19.5”
