Used 1986 DANLY TS4-2000-216-108 | Mechanical Straight Side Presses

Description

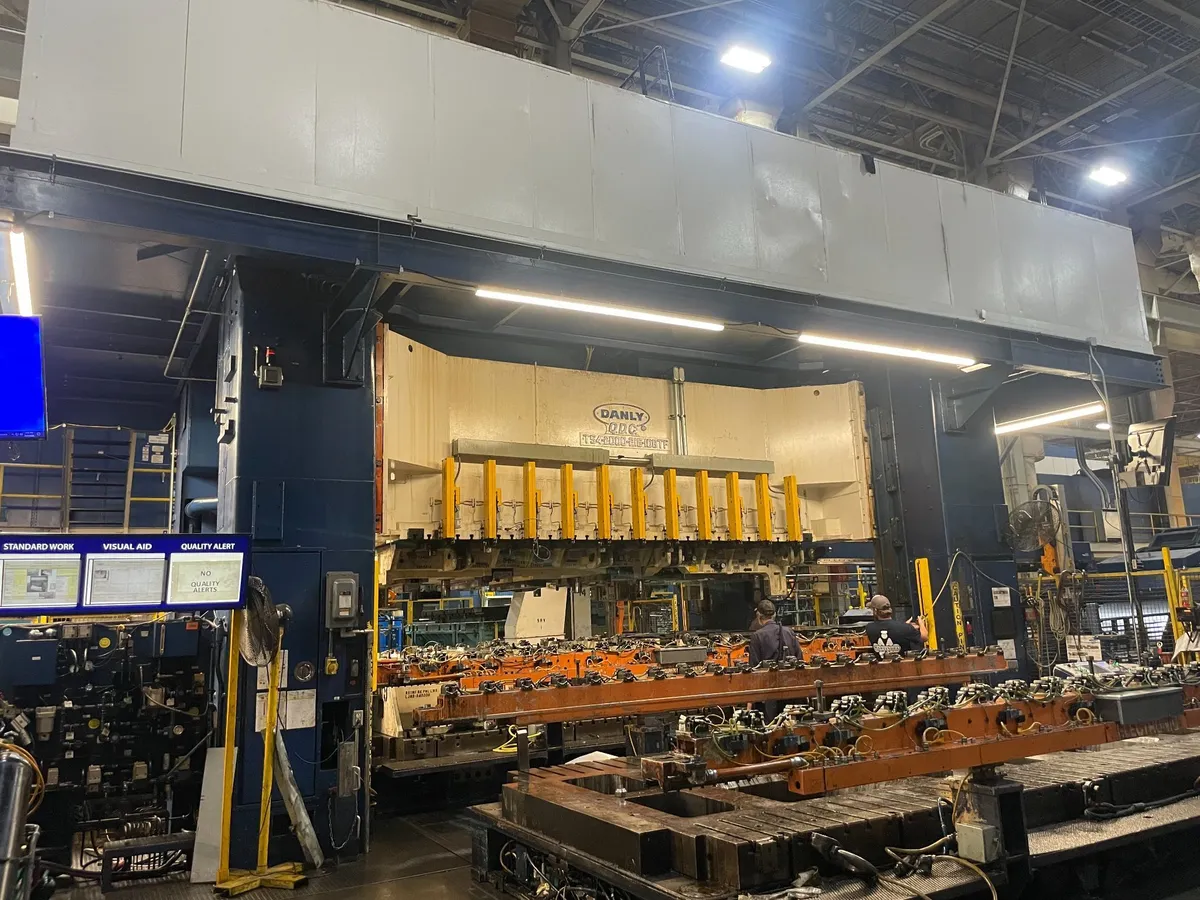

2000T Danly Press for Sale.
Including Feeder, Straightener, Destacker Specs Below.

CHS DRF672 Servo Feeder/Straightener with 72" max width capacity. Handles material up to .125" x 72", .225" x 24", and .27" x 26". Feed length 0–99", right-to-left feed direction, minimum 30" feed height above bolster.

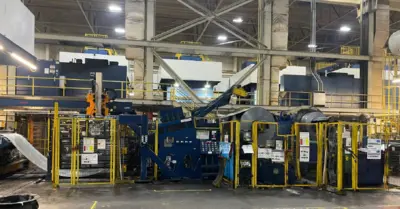

Paired with HMS PS4X7X72 Servo Decoiler rated for 40,000 lb max coil weight, 72" max coil width, 19.5"–23.5" coil ID range, and 20–100 FPM line speed.

Includes destacker with 0–99" feed stroke, 30" feed height, and 35" max stack height.

Transfer rail system features 144" press column opening, 43"–120" adjustable rail distance, 36" max clamp adjustment, 23" rail height from bolster, 10" max rail lift, and 42" max pitch (standard pitch).
