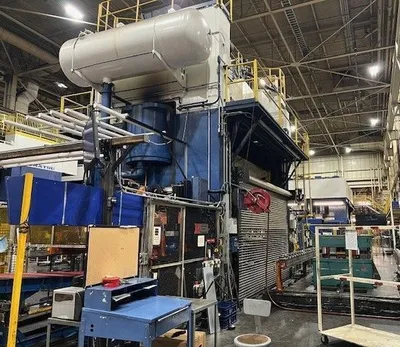

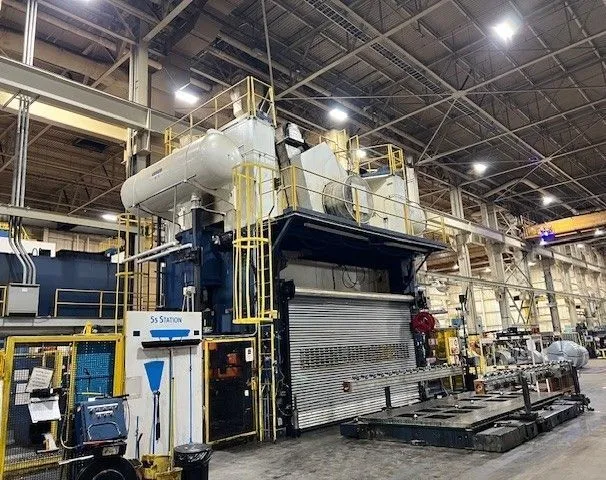

1600T Verson

Description

1600T Verson with Coil Feeder, Decoiler and Transfer rail

Coil Feeder Specifications:
Make- Colt
Type- Servo
Model- CRFW-40-72
Max Width- 72"
Material Thickness x Width- .080 x 72", .150 x 24"
Feed Above Bolster (MIN) - 30"
Feed Length Capacity- 0-99
Feed Direction- Right to Left

Decoiler Specifications:
Make- Colt
Type- Servo
Model- CHDRCK 4000-60
Max Coil Weight- 35,000 lbs
Max Coil Width- 60"
Max Coil Dia ID- 22"
Min Coil Dia ID- 20"

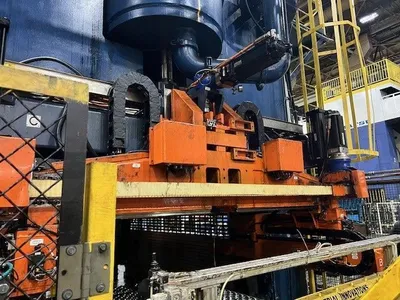

Transfer Rail Specifications
Press Column Opening-108"
Make0 HMS
Type- Servo
Model- 800HD
Max Distance Between rails- 85"
Min Distance Between Rails- 18"
Max Clamp Adjust- 36"
Rail Height from Bolster- 28.5"
Max Rail Lift- 12"
Max Pitch- 36"
